Patented Multiple Functions Smart Pole 13 for Smart City
Smart Light Pole - 13 (New Moom)
This patented product smart light pole-13 design with an attractive appearance and multiple functions such as a weather station, smart lighting, sensor, RGB status light, HD camera, wireless AP(WIFI), broadcasting speaker, LED/LCD touchscreen display, emergency call system, wire and wireless charging port, and charging station. The most salient feature is its charming design, which makes it a visually appealing addition to any environment, it is the perfect combination of beauty and practicality. Smart pole-13 is a beloved product from customers worldwide. Convenient integrated neat design does not take up much room to install but consists of necessary functions that mundane life needs. It minimizes installation space while providing all the essential services required in modern urban and community settings.
SCCS (Smart City Control System)

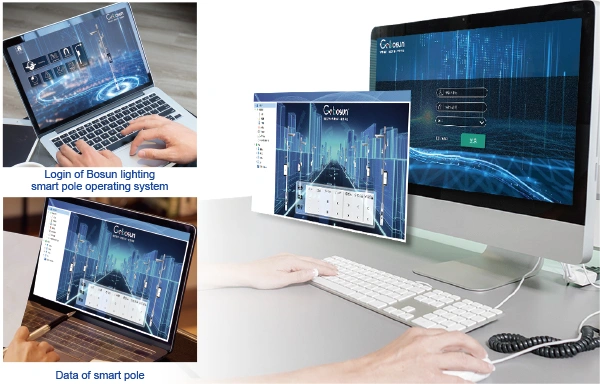

Is a city intelligent devices management system and built-in SSLS（Smart Street Light System), which was independently developed by Gebosun®. It has strong functions such as data display on a large screen, devices management, ERP asset management, operation and maintenance management, user (sub-account) management, and integration with third-party systems to achieve more intelligent management. Gebosun® SCCS system can be used normally on the following devices: PC/iPad/mobile app (Android).
Smart Street Light Pole Application Scenarios
City roads: Used for road lighting, which can be integrated with traffic monitoring, environmental monitoring, and other functions.
Parks and squares: Provide lighting while realizing public broadcasting, information release, etc.
Parking lot: Assist vehicle guidance, monitoring, etc.
Scenic spots: Enhance the level of scenic spot intelligence through intelligent lighting control, visitor information services, etc.
Intelligent Devices Of Smart Pole 13
123
Weather Station
Collect and send data to the monitoring center by concentrator, such as weather, temperature, humidity, lighting, PM2.5, noise, rainfall, wind speed, etc.
Smart Street Lighting
Smart street lighting Cellular cooling technology Intelligent single lamp / centralized controller Light distribution based on uniform brightness Various modular design lamp caps are optional
HD Cameras
Monitor traffic and security lighting. It is the secure monitor equipment through HD cameras for surveillance on the pole.
Wireless AP(WIFI)
123
Public speaker
Upload a radio audio file or post emergency information from the control center, so that people nearby can understand what happened.
Emergency Call System
LED Display
SMART STREET LIGHT POLE
(SCCS- Smart City Control System)
1. Smart City Control System： Cloud-based structure that supports high concurrent data access.
2. Fast and seamless access to third-party systems, such as SCCS smart city system access.
3. Distributed deployment system which can expand RTU capacity easily.
4. A variety of system security protection strategies to ensure software security and stable operation.
5. Boot self-running service support.
6. Support a variety of database clusters and large databases, automatic data backup.
7. Cloud service technical support and maintenance.
Smart Light Pole SCCS Structure
·The system features
Fault alarms
Easy installation
Lamp and line status
Power quality metering
Remote monitoring（turn on/off, dimming, data query, etc)
·CO, reductions
Reducing the costs and CO, emissions of streetlights is a necessary
challenge from utilities and distribution companies who face:
Rapidly increased electricity costs
Co, reduction requirements
Growing electricity demands
·Cost savings
Energy and cost savings result from:
Dimming at off-peak traffic hours
Reduced maintenance costs
Burn hour optimization
Accurate switch ON/OFF
·Functions
-Cloud-based structure that supports high concurrent data access
-Distributed deployment system which can expand RTU capacity easily
-Fast and seamless access to third-party systems, such as smart city system access
-variety of system security protection strategies to ensure software security and stable operation
-Support a variety of large databases and database clusters, automatic data backup
-Boot self-running service support
-Cloud service technical support and maintenance
Functions of Smart Light Pole System
Distributed deployment, extendable RTU space
Keep the entire street lighting system in view
Easy to integrate with the third-party system
Support multiple communication protocols
Convenient management entry
Cloud-based system
Elegant design
Geographic Information System
The large-screen data display includes equipment statistics, equipment online rate, operation and maintenance analysis prompts, alarm prompts, etc. Click on the solar street lights, city circuit lights, and smart light poles in the upper right corner of the page to enter each corresponding platform
Smart Street light pole system
The left and right columns on the page are the information of each device. The small icon in the middle can be clicked to perform basic operations. The first of the two text boxes in the middle of the page is to select the item to be demonstrated, and the second is to select the light pole that needs to be demonstrated. Device management in the upper right corner Access to advanced device management
Assets Management
Smart street light, control the street light switch in the lighting operation Optional, adjust the brightness by pulling the brightness progress bar, you can click Update to update the device information
Assets Management
One-click alarm, click the call for help button to alarm, record the alarm record
Task Strategy
Task Strategy
Weather station
●Shell material: ASA engineering plastics
●Response time: less than 30 seconds
●Storage conditions: -40~60℃
●Standard wiring length: 3 meters
●The farthest lead length: RS485 1000 meters
●Stability: less than 1% during the sensor life cycle
●Working environment: temperature -30～70℃, working humidity: 0-100%
●Warm-up time: 30 seconds (SO2NO2COO3 3 hours)
●Working current: DC12V≤40mA(HCD6815)-DC12V≤125mA(HCD6820)
●Power consumption: DC12V≤0.5W(HCD6815); DC12V≤1.5W(HCD6820)
●Life: Except for SO2NO2COO3PM2.5PM10 (1 year in normal environment, high pollution environment is not guaranteed), the life span is not less than 3 years.
LED/LCD Display
-The LED backlight technology is used to combine the A -regulatory screen, color-saturated, uniform brightness, high contrast, delicate screen, long service life
-After rigorous the temperature control box test, the adaptation temperature can be between -30 ° and 80 °. Whether it is winter or summer, it can run stably
-The panel is covered with tempered glass, and the IP65 level level is waterproof and dustproof.
-Use low-power industrial processors to run stable and fast, not stuck
-Outstanding compatibility, stable operation of various systems, compatible with a variety of software, easy to operate, simple, smarter, faster
Wireless AP(WIFI)
-
Support 64 user access, 40+users at the same time to meet WiFi coverage of small-medium sized squares/parks/scenic spots/villages
-
Designed for outdoor wireless transmission, the transmission distance is ≥2km
-
Remote management through the cloud platform is convenient for engineering maintenance and management and reduces the cost of material resources
Broadcasting Speaker
PTZ (outside camera）
·Ultra-low illuminance is supported, 0.005 Lux @F1.6 (color), 0.001 Lux @F1.6 (black and white), 0 Lux with IR.
·Support 485 to read Haikang standard battery power information and perform OSD superposition.
·Support three-bit stream technology, and each bit stream can independently configure the resolution and frame rate.
·Support intelligent detection such as area intrusion detection, cross-border detection, entering area detection and leaving area detection.
·Support Haikang SDK, open network video interface, ISAPI, GB/T28181, ISUP, fluorite.
·Support 4G (Mobile, China Unicom, telecommunications) network transmission, compatible with 3G (mobile, China Unicom, telecommunications)
Emergency Call System
2 . The integrated system scheme configuration consists of system server software, multi-screen software, telephone agent software and an integrated IP network intercom terminal.
3 . Multi-level management structure: The system has a multi-level management structure, which can unify the networking of multiple duty rooms at different levels; The system can be accessed by the other party with Ethernet, which supports cross-network segment and cross-routing, and can be connected to the Internet.
4 . Support high-definition image resolution up to 1280*720, and adapt to the network bit stream technology.
IP video intercom paging console
Application Scenarios
This product is a central management machine applied in IP visual intercom, can be used with alarm / intercom server, can also be used independently, supports LAN and Internet use, with visual intercom, remote control, automatic queuing, remote call processing and other functions. Widely used in intercom, alarm, parking lot, government and enterprise, hotel, real estate, medical treatment, and other scenarios.
Introduction
"Visualization cloud head BS-YT 10"is a high-end desktop intercom terminal that integrates audio and video calls and hands-free calls. The appearance is simple and generous, with a 10.1-inch 1280 * 800 multitouch IPS capacitive screen and an 8-megapixel wide-angle HD camera that can flip to 210 degrees.
Charging Station
DATA-BOX
